Add shade, charm, and protection to your windows with this 48-inch wooden awning woodworking plan — fully detailed and easy to build with standard tools. This exterior upgrade enhances both curb appeal and energy efficiency by blocking direct sun while adding a timeless wooden accent above your windows.
Whether you're upgrading your porch, restoring a farmhouse, or creating a shaded area above a window, this project is built to last. Designed for universal fit and strong enough to hold optional roofing materials such as shingles or tiles.
What Makes This Plan Special:
Designed for a 48-inch wide window
24 step-by-step build illustrations included
Full cut list for all wood components
Pilot hole positions, dowel holes, and pocket hole diagrams provided
Materials sourced from standard Home Depot / Lowe’s inventory
Compatible with custom roofing (shingles, metal, tile)
Printable on letter-size or tablet-friendly PDF format
The plan utilizes durable 4x6 and 2x4 lumber for maximum support. OSB or plywood is used as the main surface panel. It’s held together with a combination of 1½", 2½", and 6" screws — along with 8 wood dowels for concealed strength and clean finishes.

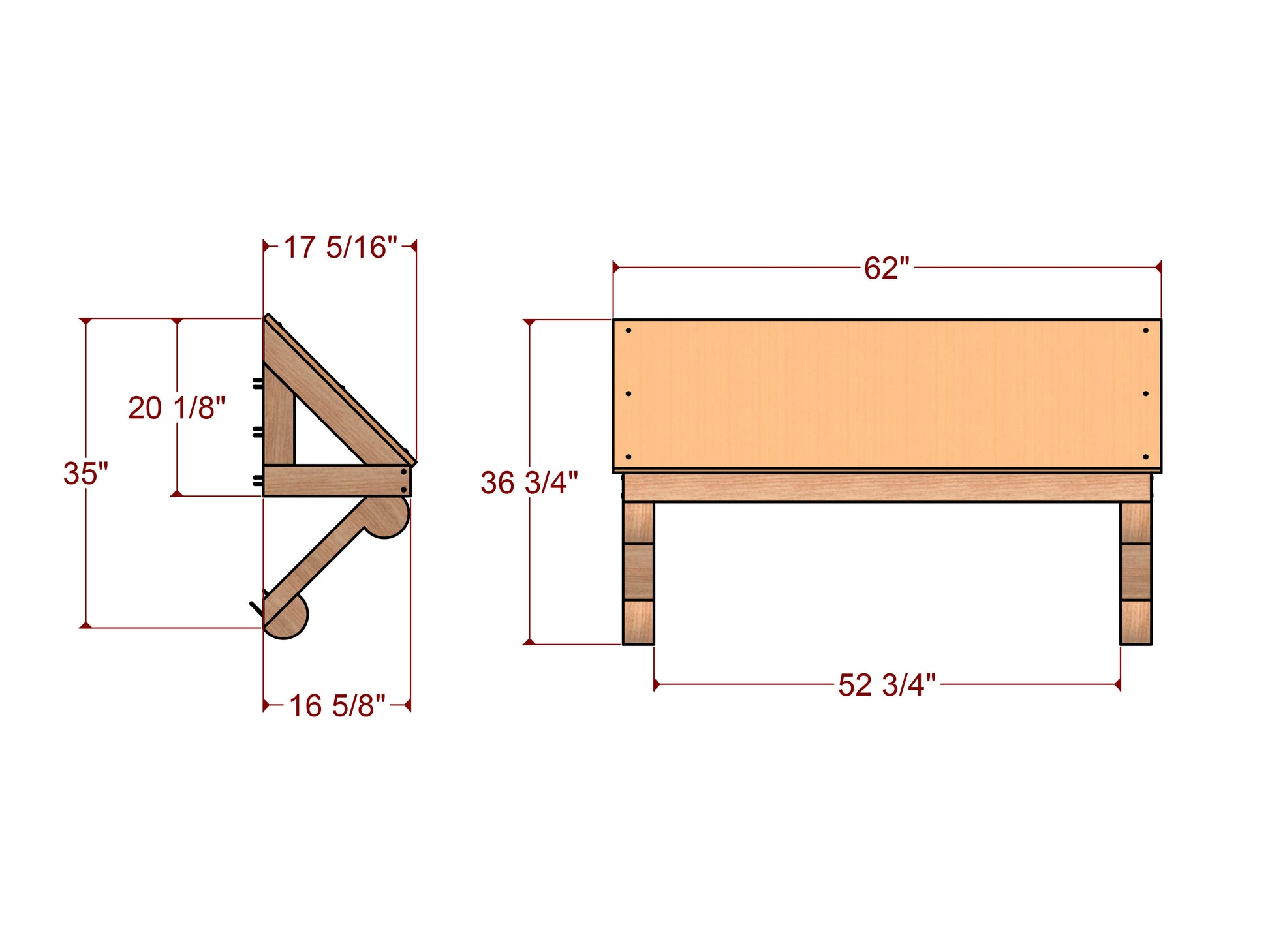

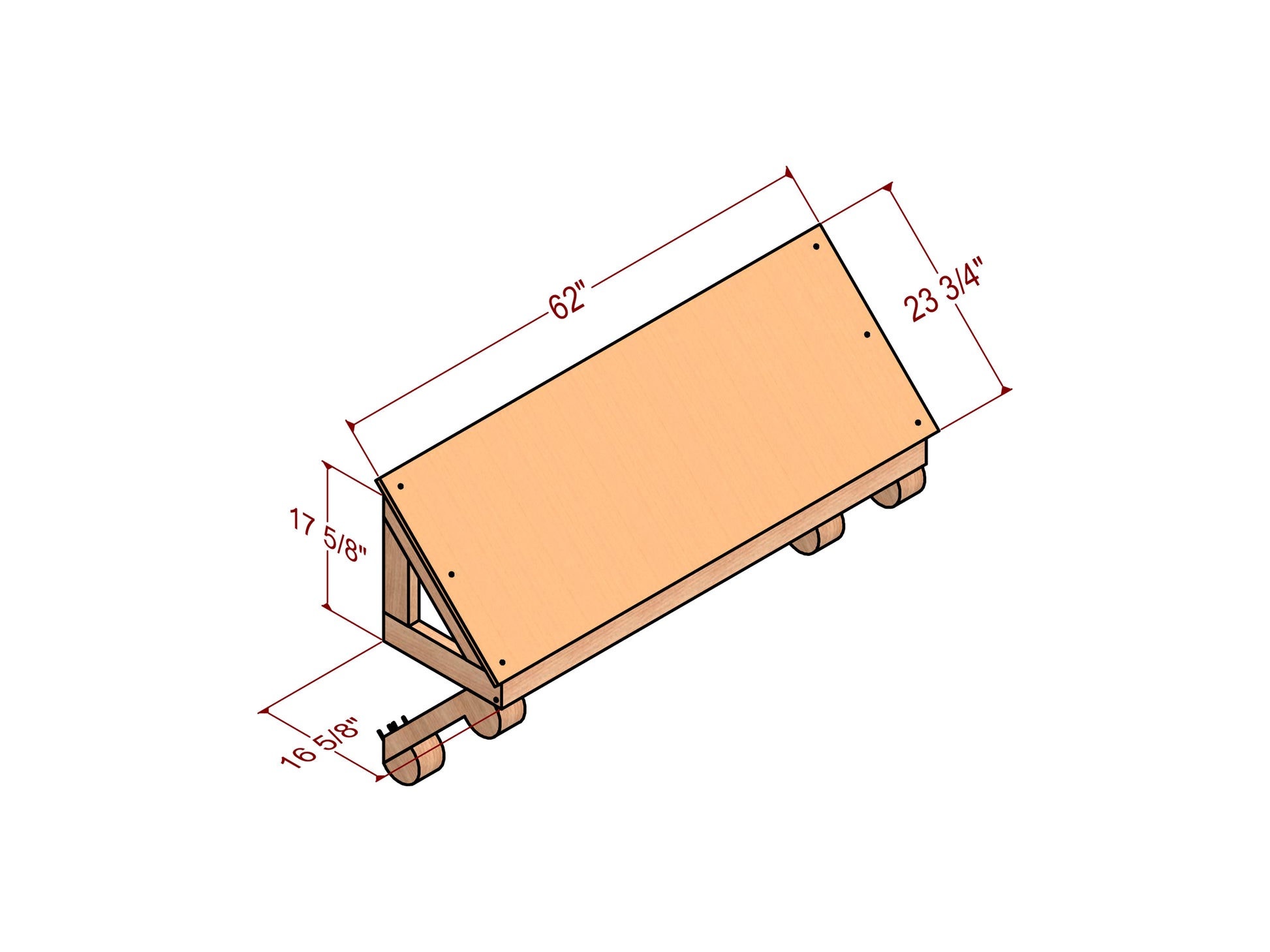

All dimensions and diagrams are in inches (imperial system).
Included in Your Download:
Printable PDF woodworking plan (29 pages)
Full cut list & labeled diagrams
Step-by-step visual guide (24 assembly steps)
Pilot hole, pocket hole & dowel guide diagrams
Part numbers, views, angles, and bracket installation
Direct shopping links for tools and materials
Tools You’ll Need:
Circular saw or miter saw
Drill with bits for pilot and pocket holes
Pocket hole jig (recommended but optional)
Clamps, measuring tape, square
Safety glasses
Materials Required:

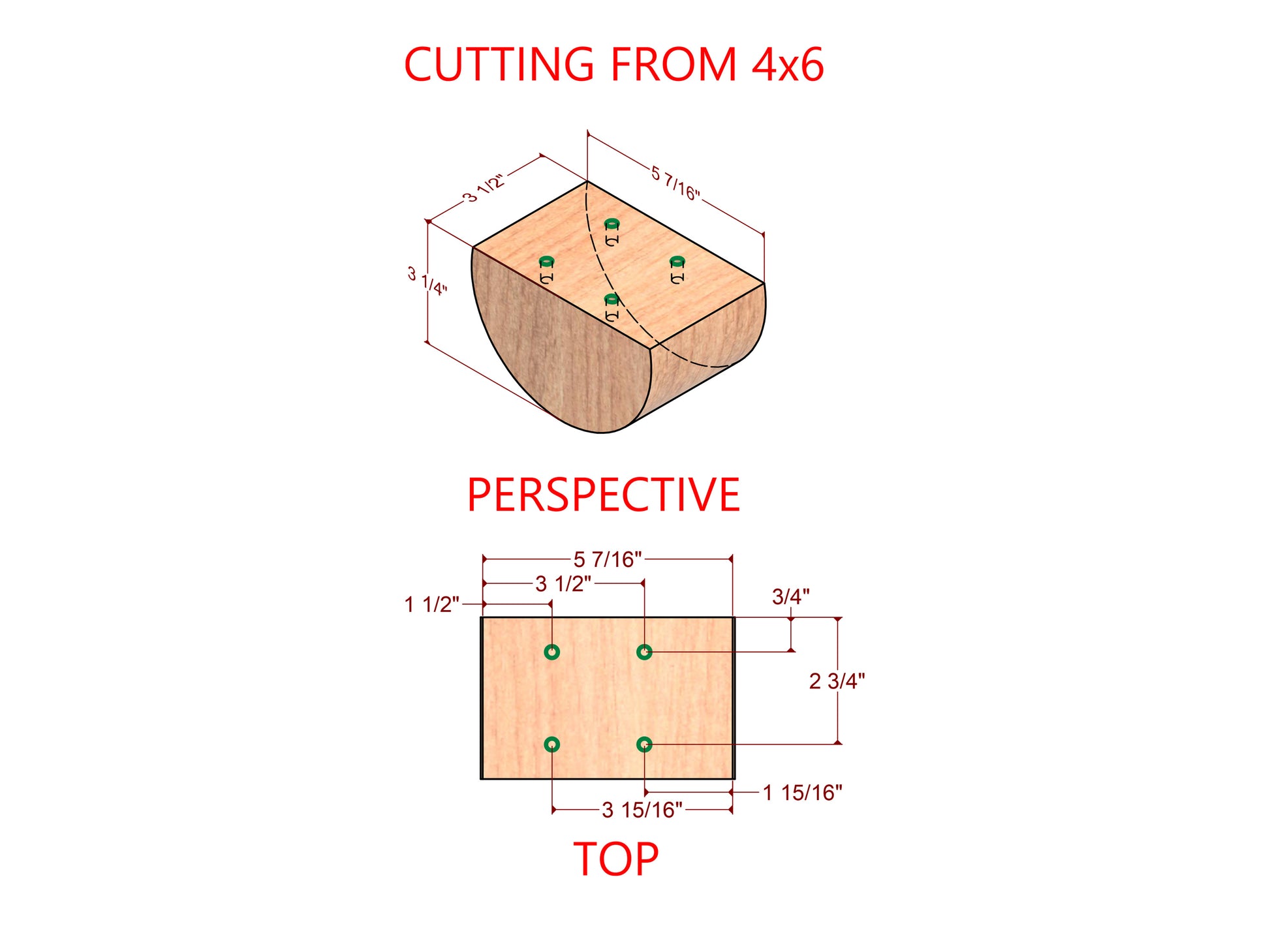

(1) 4"x6"x8' Lumber
(4) 2"x4"x8' Lumber
(1) ¾"x4'x8' OSB Sheet
2½" Wood Screws
6" Wood Screws
1½" Wood Screws
8 Wooden Dowels
Optional: 6” Strong Tie Brackets (Qty: 8)
Finish: Paint or Exterior Sealant
Roofing material such as shingles or tiles is optional and not included in the plan. But the structure is designed to carry light to moderate roofing weight when built correctly.
This is a digital download only. No physical item will be shipped. Ideal for DIYers, carpenters, and home renovators looking for a functional and elegant exterior wood detail.
