Protect your vehicles and add massive value to your property with our "Catherine" 20x30 Carport. Designed for the serious DIYer who wants a professional, rock-solid structure, these plans walk you through building a heavy-duty shelter that stands the test of time. Whether you need a massive garage for two vehicles or a shaded outdoor workshop, this 600-square-foot footprint delivers the space and durability you need.

Technical Specs:

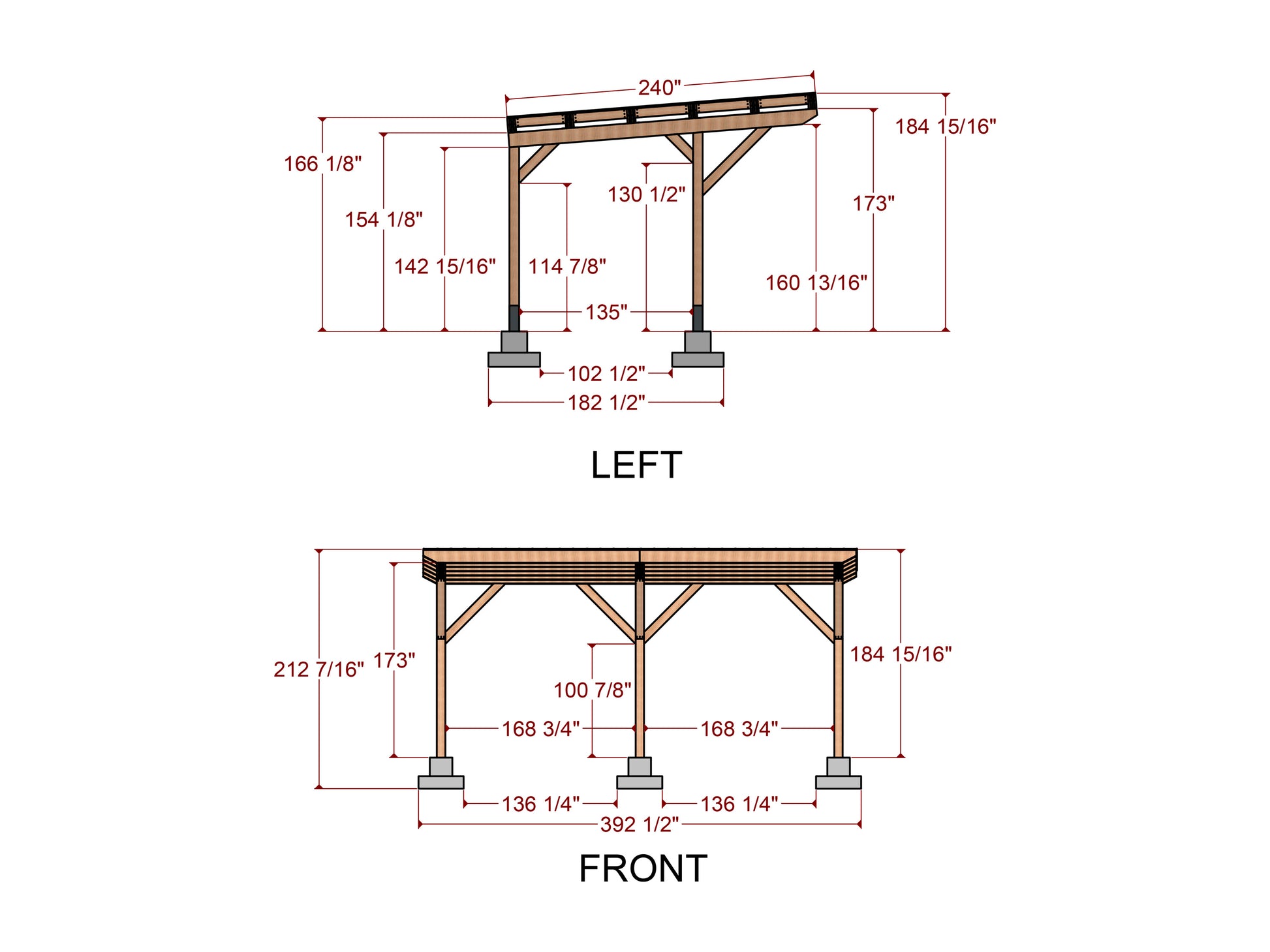

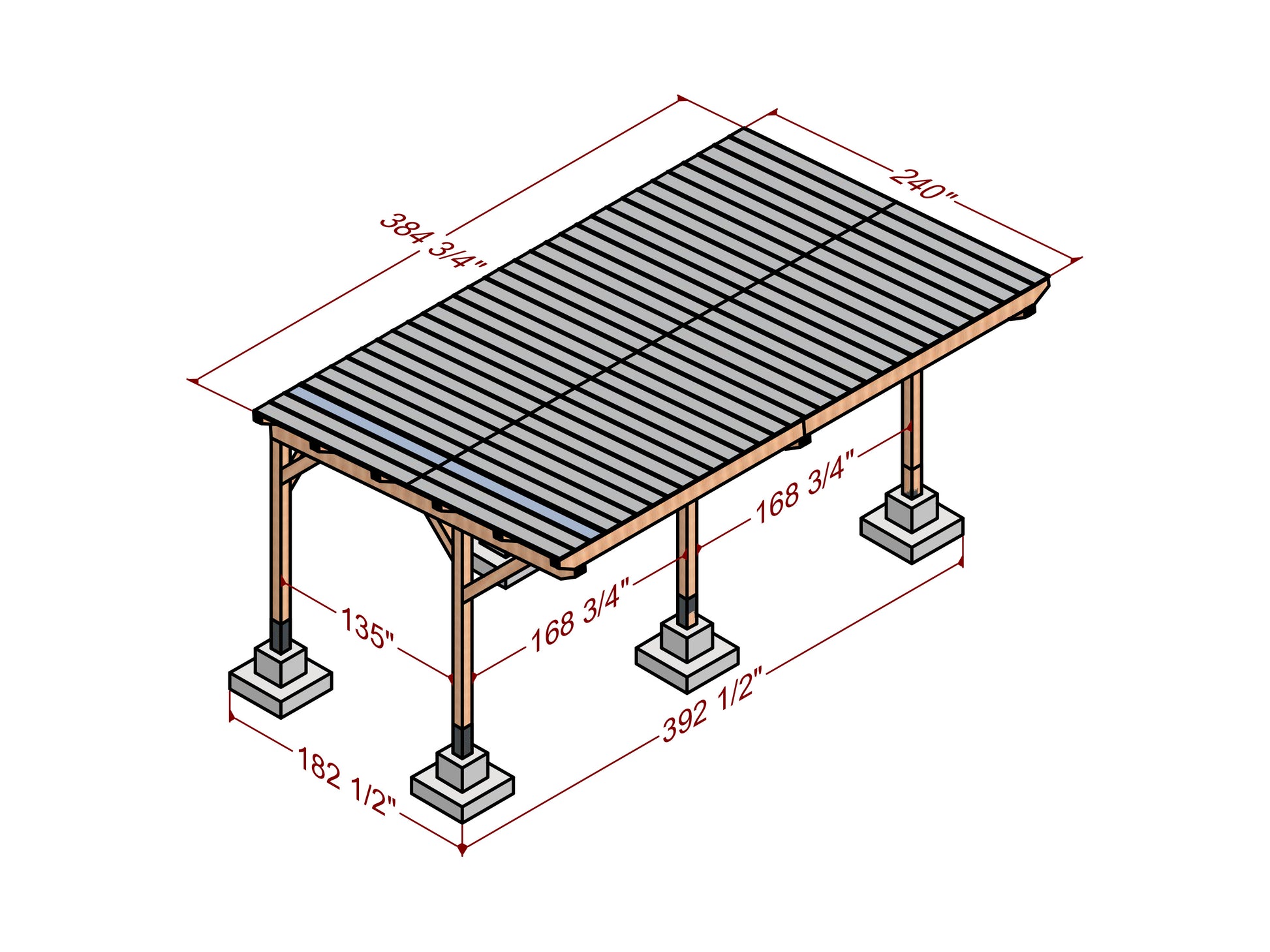

• Dimensions: 20' Width x 30' Length (Approx. 240" x 392.5" roof footprint).

• Posts: Heavy-duty 8x8 lumber for maximum structural integrity.

• Beams: Custom laminated beam design for superior strength and spans.

• Foundation: Concrete footings with steel post bases and rebar reinforcement.

• Roofing: 512 sq. ft. coverage using OSB sheathing and roofing sheets.

Required Tools:

• Miter Saw & Circular Saw

• Power Drill / Driver

• Pocket Hole Jig

• Tape Measure & Speed Square

• Level (Post Level recommended)

• Clamps (For beam lamination)

• Safety Gear (Goggles, Gloves, Ear protection)

What’s Included:

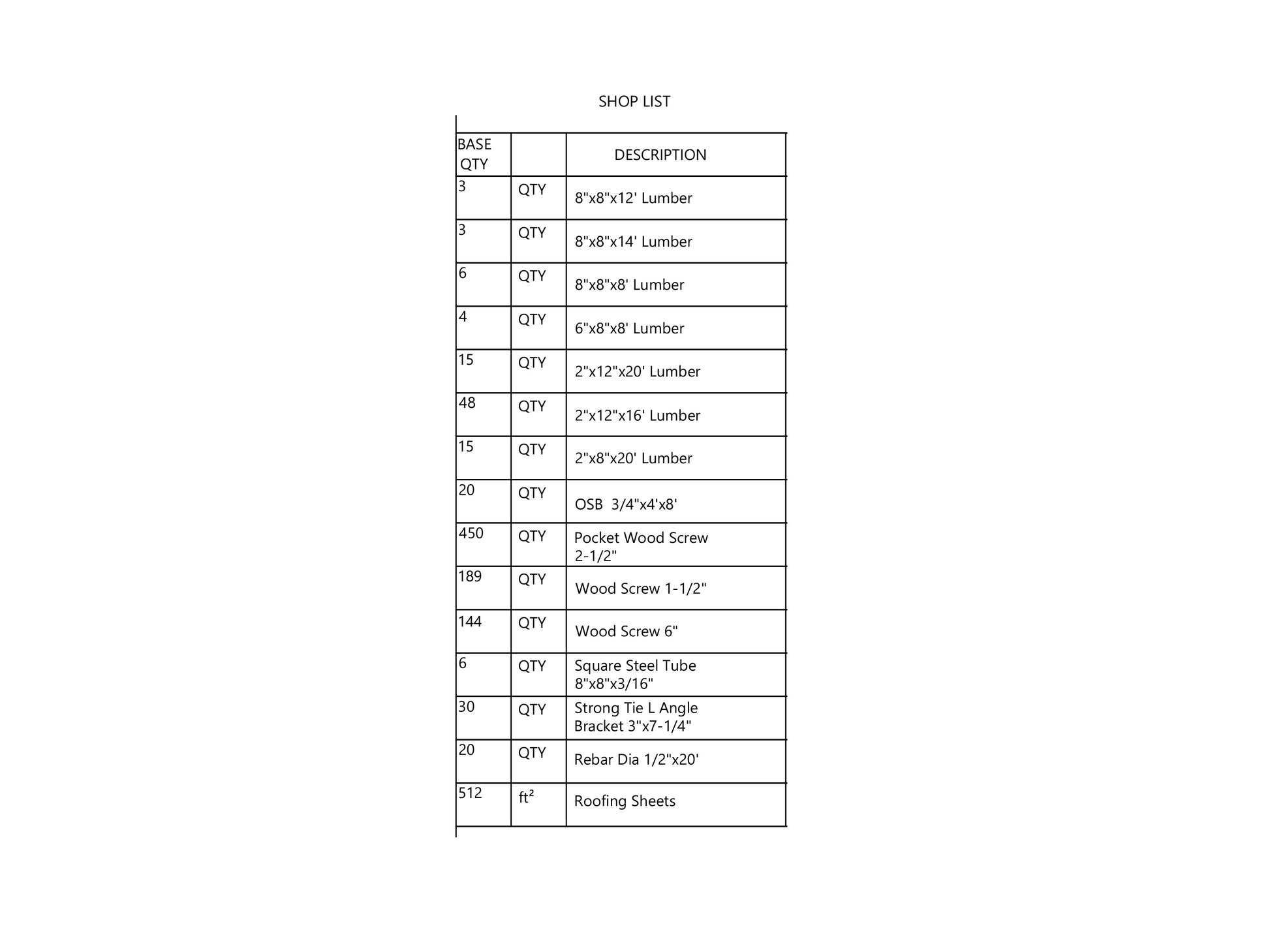

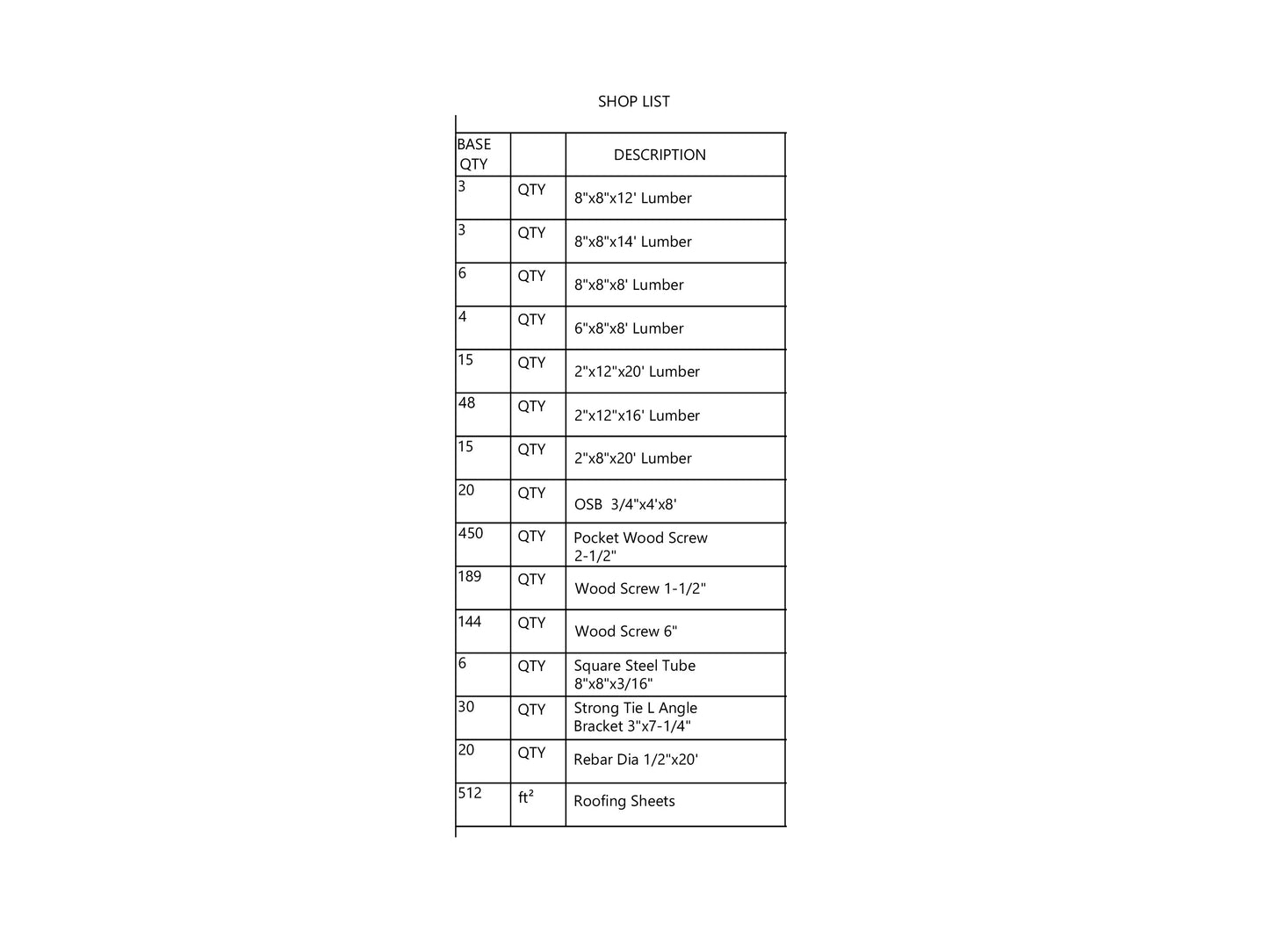

• Complete Shopping List: Detailed lumber, hardware, and material quantities.

• Precision Cut List: Exact measurements for every board to minimize waste.

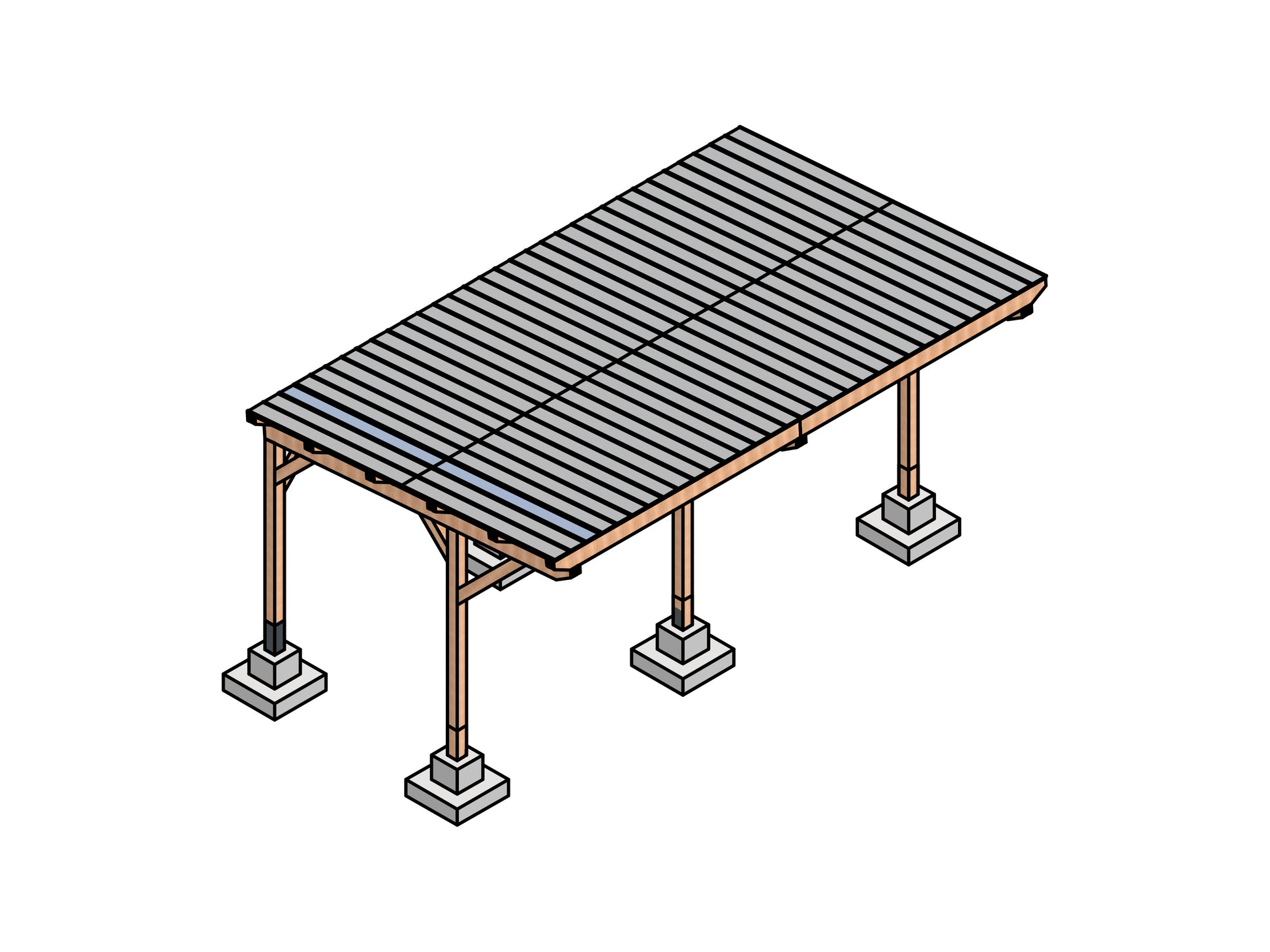

• 3D Visuals: Clear perspective views from multiple angles.

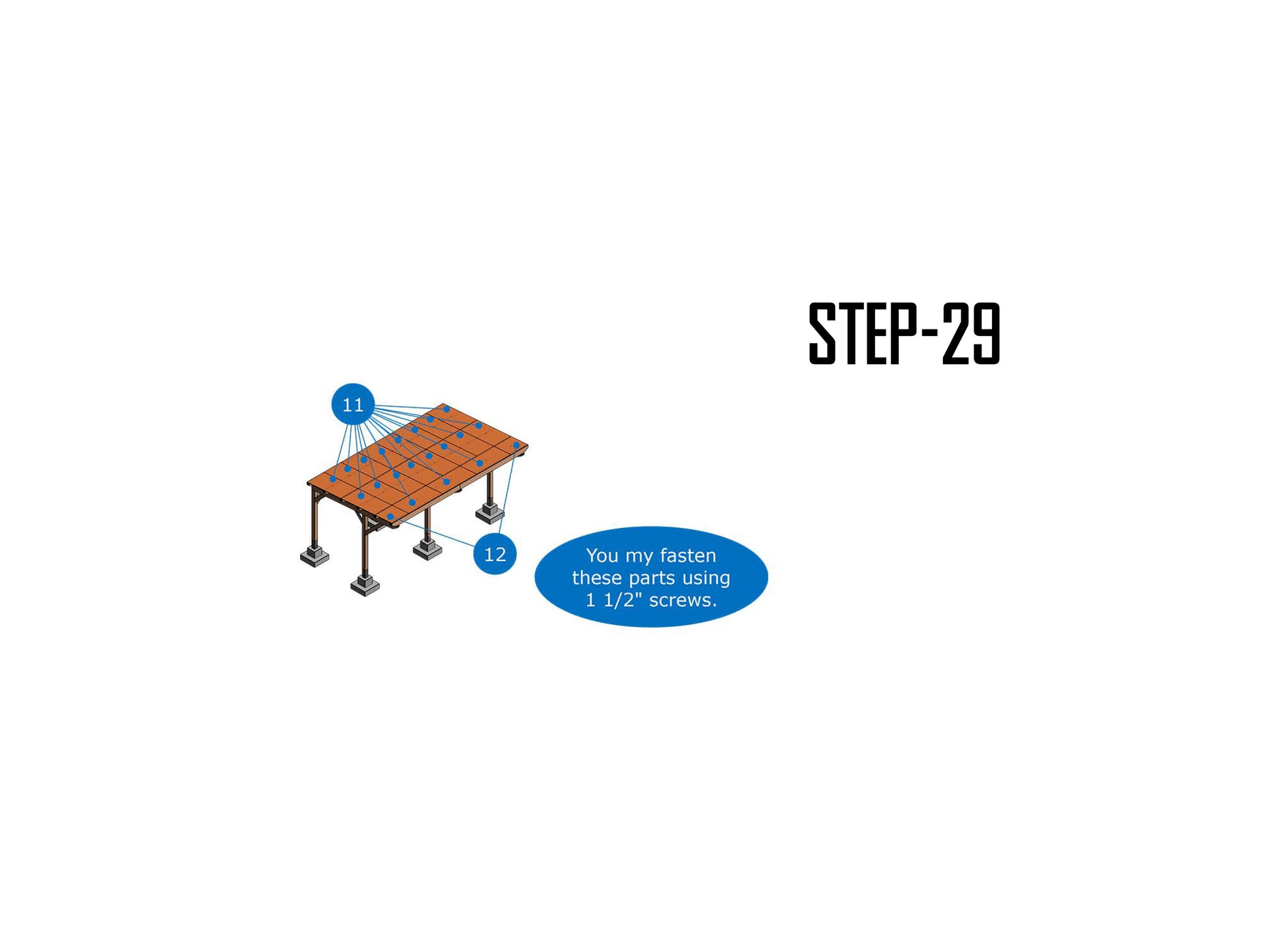

• Step-by-Step Guide: 33 logical assembly steps from foundation to roof.

• Joinery Details: Specific hole placements for pocket screws and structural wood screws.

Disclaimer: This is a digital download. No physical materials will be shipped. Please check your local building codes before starting construction.
